Clashes Not Showing Color in Navisworks 2012

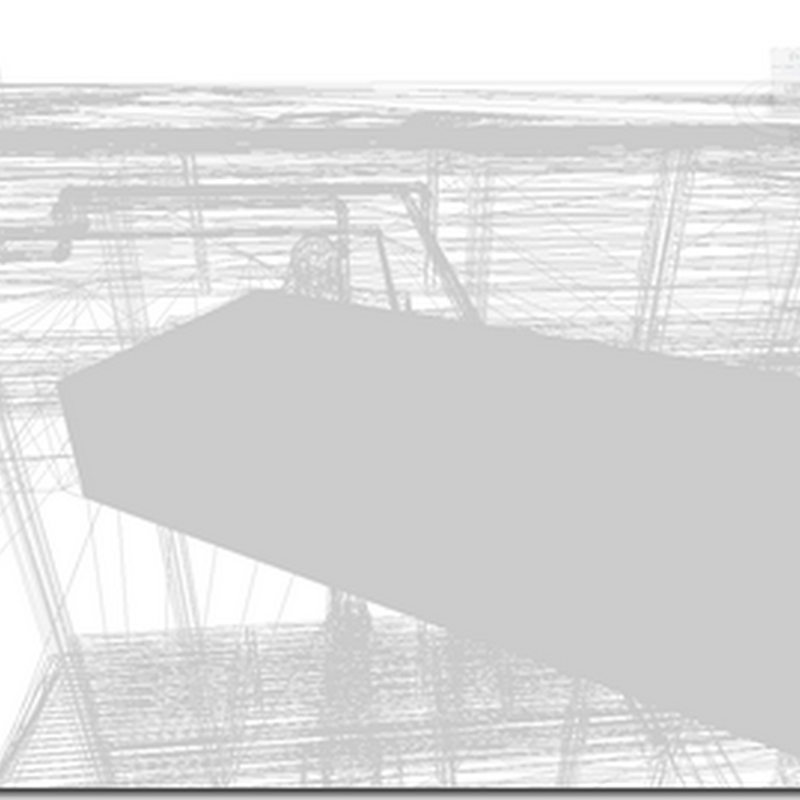

I’ve run across a little issue with Navisworks 2012 where the clashes sometimes will not show the actual color of the Clash Status…i.e. Red for new, Orange for Active, etc.  The issue seems to be with the Lighting for the Render Style.  If the Render Style is set to Full Lights, clashes show up solid gray like this…


In order to fix this, all you need to do is change the Render Style to utilize Scene Lights (or Head Light or No Lights) and then the clashes will show up properly…


This is a defect and Autodesk Support is saying that the Development Team is aware of the issue.  Now we’ll just have to keep our fingers and toes crossed that a fix is released soon.  Once a fix has been released, I’ll post an update.
